REED SPACE : | 150 cm to 300 cm (60″ to 120″) |
---|---|
WIDTH REDUCTION : | Minimum 4″ & Maximum 20″ |
PERFORMANCE : | Filling insertion rate up to 275 m/min |
YARN RANGE : | Spun Yarn : Ne 8.0 to Ne 120 I Filament yarns : 20 den up to 2000 den |
FILLING SELECTION : | Pick and pick selection by mechanical up to 8 colour mechanically controlled by Dobby / Jacquard |
SHEDDING MOTION : | Tappet / Dobby / Jacquard |
LET-OFF MOTION : | Mechanical & Electrical semi positive let-off. I Warp beam dia : up to 600 mm I Back rest : Double back rest rolls |
STOP MOTION : | Warp : infrared Sensor I Weft : Piezo Electronic Sensor |
CUTTER : | Weft Cutter : Mechanical Standard (M.S.) I Selvedge Cutter : Mechanical Standard |
CLOTH TAKE UP : | 7 Wheel with 5 Polls I Cloth Roll Dia : up to 400 mm |
MAIN DRIVE : | 6-Pole ac motor with electromagnetic break |
LUBRICATION : | minimal manual lubrication points and remaining all friction points are fitted with self-lubrication sealed bearings. |
MODEL | REED SPACE | WIDTH | HEIGHT | LENGTH |
---|---|---|---|---|
OCR60 | 150cm / 60 inch | 1790 | 1360 | 3410 |
OCR64 | 160cm / 64 inch | 1790 | 1360 | 3510 |
OCR68 | 170cm / 68 inch | 1790 | 1360 | 3610 |
OCR72 | 180cm / 72 inch | 1790 | 1360 | 3710 |
OCR76 | 190cm / 76 inch | 1790 | 1360 | 3810 |
OCR82 | 205cm / 82 inch | 1790 | 1360 | 3960 |
OCR92 | 230cm / 92 inch | 1790 | 1360 | 4210 |
OCR102 | 255cm / 102 inch | 1790 | 1360 | 4460 |
OCR110 | 275cm / 110 inch | 1790 | 1360 | 4660 |
OCR120 | 300cm / 120 inch | 1790 | 1360 | 4910 |

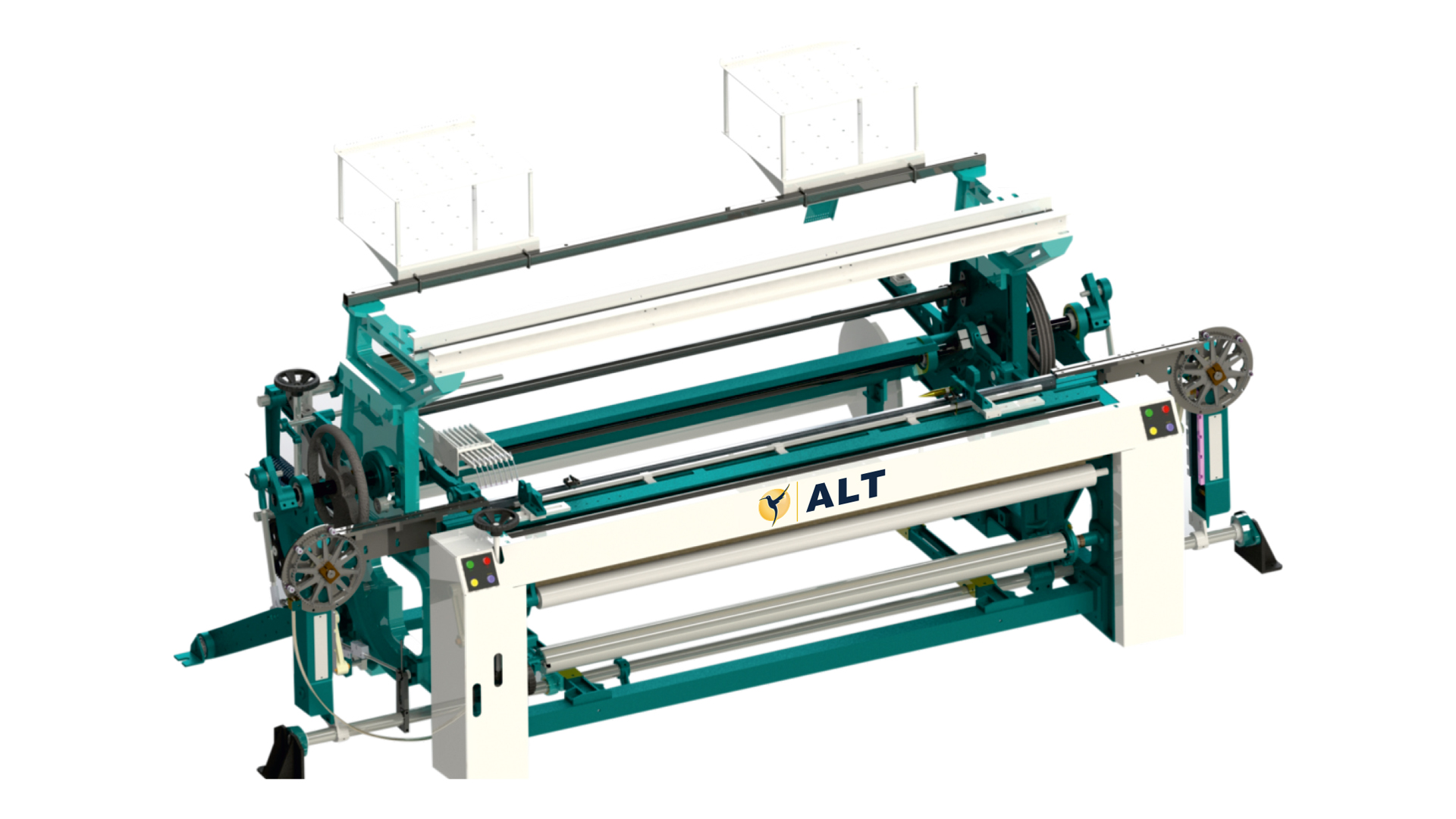

Rapier Loom Machine Description:
A rapier loom machine is a priceless weaving loom in which the filling yarn. It is helped through the shed of twist yarns to the opposite side of the loom by a finger-like bearer called rapiers.
A fixed bundle of yarn is utilized to supply the weft yarns in the rapier machine. One finish of a rapier, a bar or steel tape, conveys the weft yarn. The opposite finish of the rapier is associated with the control system. The rapier gets across the width of the textile material, helping the weft yarn across through the shed to the contrary side. The rapier is then withdrawn, leaving the new pick location.
In certain forms of the rapier loom machine, two rapiers are utilized, a large portion of the width of the material in size. One rapier conveys the yarn to the focal point of the shed, where the restricting rapier gets the yarn and conveys it the rest of the path across the shed. The double rapier loom machine is utilized more than the single rapier machine because of its speed up and capacity to weave more extensive widths of material.
More rapier loom machines are worked with two particular weaving regions for two different fabrics. On such rapier loom machines, one rapier gets the yarn from the middle, between the two different fabrics, and conveys it across one weaving region; as it wraps up laying that pick, the furthest edge of the rapier gets another yarn from the middle, and the rapier moves the other way to lay a pick for the second weaving zone, on the other portion of the rapier loom machine. A solitary width of texture for a solitary inflexible rapier system, a twofold unbending rapier system, and a twofold adaptable rapier system.
Rapier loom machines faster than most shuttle machines yet more steadily than most other machines. A significant lead of rapier loom machines is their adaptability, which allows the laying of picks of various colors. They additionally weave yarns of fiber and can weave fabrics up to 110 inches in width without adjustment.
With the help of our experts, we give our customers an excellent Rapier Loom machine. WE offered rapier loom machine is made utilizing ideal quality parts and growing technology in adherence to industry standards. Because of its various quality highlights, this rapier loom machine is broadly adulated by our important customers. We offer this rapier loom machine to the clients according to the prerequisites to satisfy their various requests.
Being one of the prominent names of the business, we are engaged with offering definitely planned and created Rapier Loom Machine. Made in consistence with the predefined business principles, these productive machines are utilized for weaving heavy and thick terry towel textures. Famous for their high creation rate, the proffered machines are widely requested.
At Anjali Liberty Textiles, a Fully Computerised Rapier Loom machine manufacturer in Surat. We are specialized manufacturers from India that provide different sizes of machines and more. We provide full and perfect after-sales service, R & D, technical support, and spare parts. We also manufacture and export Rapier looms with high-speed Electronic Jacquard Machines to worldwide countries. We are pleased to present ourselves as the top Rapier Loom machine manufacturer, trader, distributor, and supplier. Our weaving rapier loom is made under the supervision of skilled specialists utilizing high-quality components and cutting-edge technology. This rapier loom is also praised for its great strength and extended lifespan. We provide this weaving loom to customers at competitive pricing.
Get a free quote from a rapier loom machine manufacturer and services in Surat.
